Double row angular contact ball bearings
> Brass cage double row angular contact ball bearing
Part Number:
d:
D:
B:
Brass cage double row angular contact ball bearing
Object

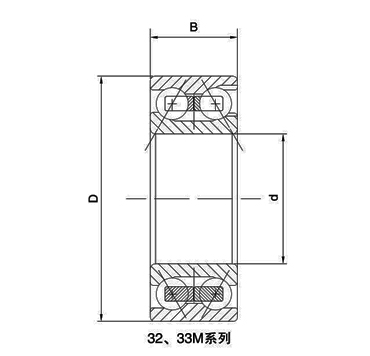

Drawing
PDF
Contacts :
Phone number :
E-mail :
Remark :
Verification:
select
Inquiry
Bearing No.
Dimensions(mm)
Rated load(KN)
Weight
Old No.
New No.
d
D
B
r
Cr
Cor
Mass(KG)
3056212M
3212M
60
110
36.5
1.5
83.5
72.5
1.55
3056213M
3213M
65
120
38.1
1.5
87.5
79.5
1.78
3056214M
3214M
70
125
39.7
1.5
90
80.5
1.9
3056215M
3215M
75
130
41.3
1.5
106
95.5
2.15
3056216M
3216M
80
140
44.4
2
112
106
2.7
3056217M
3217M
85
150
49.2
2
140
129
3.5
3056218M
3218M
90
160
52.4
2
153
142
4.18
3056219M
3219M
95
170
55.6
2.1
163
184
5.1
3056220M
3220M
100
180
60.3
2.1
210
240
6.14
3056221M
3221M
105
190
65.1
2.5
210
240
7.4
3056222M
3222M
110
200
69.8
2.5
218
245
9.2
3056224M
3224M
120
215
76
3
251
291.5
11.1
3056226M
3226M
130
230
80
3.5
259.5
314.9
13.3
3056228M
3228M
140
250
88
3.5
304.5
391.3
15.2
3056308M
3308M
40
90
36.5
1.5
60.5
44
1.01
3056309M
3309M
45
100
39.7
1.5
72.5
54
1.41
3056310M
3310M
50
110
44.4
2
85.5
65
1.96
3056311M
3311M
55
120
49.2
2
106
82
2.68
3056312M
3312M
60
130
54
2.1
122
96
3.25
3056313M
3313M
65
140
58.7
2.1
138
109
4.18
3056314M
3314M
70
150
63.5
2.5
155
125
5.2
3056315M
3315M
75
160
68.3
2.5
168
141
5.85
3056316M
3316M
80
170
68.3
3
175
151
7.75
3056317M
3317M
85
180
73
3
196
240
8.3
3056318M
3318M
90
190
73
3
225
266
9.02
3056319M
3319M
95
200
77.8
3.5
269
294
11.16
3056320M
3320M
100
215
82.6
3.5
309
359
14.2
3056321M
3321M
105
225
87.3
3.5
309
360
16.35
3056322M
3322M
110
240
92.1
3.5
329
403
19.8
3056324M
3324M
120
260
106
3.5
397.9
493.3
25.4
