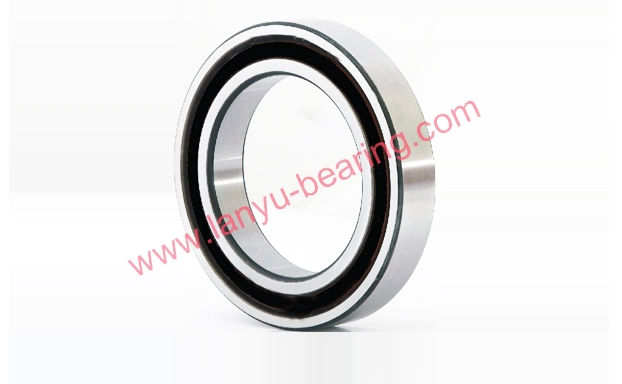

Nylon cage single row angular contact ball bearing C (15 °) AC (25 °)-Products-Shandong Lanyu Precision Bearing Manufacture Co., Ltd.

Specialzied in researching and producing double row angular contact ball bearing

Direct inquiry

PDF

Contacts :

Phone number :

E-mail :

Remark :

Verification:

select	Inquiry	Designation		Principal Dimensions			Basic Load Ratings		Limited Speed		Weight
select	Inquiry			d	D	B	Cor.	Cr.	grease	Oil	Mass（kg）
		7800C		10	19	5					0.005
		7000C		10	26	8	4.9	2.1	24000	32000	0.019
		7000AC		10	26	8	4.7	2.1	24000	32000	0.019
		7200C		10	30	9	5.8	2.9	22000	28000	0.032
		7200AC		10	30	9	5.5	2.8	22000	28000	0.032
		7200B	7200AA	10	30	9	5.3	2.7	19000	27000	0.03
		7300C		10	35	11	9.8	4.6	18000	26000	0.053
		7300AC		10	35	11	9.5	4.4	18000	26000	0.053
		7801C		12	21	5					0.006
		7901C		12	24	6	3.3	1.8	28000	36000	0.011
		7901AC		12	24	6	3.2	1.7	28000	36000	0.011
		7001C		12	28	8	5.4	2.6	22000	28000	0.021
		7001AC		12	28	8	5.1	2.4	22000	28000	0.021
		7201C		12	32	10	7.9	3.8	20000	25000	0.037
		7201AC		12	32	10	7.6	3.6	20000	25000	0.037
		7201B	7201AA	12	32	10	6.9	3.2	18000	24000	0.036
		7301C		12	37	12	11.8	5.6	17000	24000	0.06
		7301AC		12	37	12	11.5	5.4	17000	24000	0.06
		7301B	7301AA	12	37	12	10.5	4.9	16000	22000	0.06
		7802C		15	24	5				一	0.007
		7902C		15	28	7	4.7	2.6	24000	32000	0.015
		7902AC		15	28	7	4.5	2.5	24000	32000	0.015
		7002C		15	32	9	6.2	3.3	19000	25000	0.03
		7002AC		15	32	9	5.9	3.2	19000	25000	0.03
		7202C		15	35	11	9.2	4.9	17000	22000	0.045
		7202AC		15	35	11	8.9	4.8	17000	22000	0.045
		7202B	7202AA	15	35	11	7.9	4.2	16000	22000	0.045
		7302C		15	42	13	13.2	6.7	15000	21000	0.084
		7302AC		15	42	13	12.5	6.2	15000	21000	0.084
		7302B	7302AA	15	42	13	12.4	6.5	14000	19000	0.08
