U-shaped iron cage double row angular contact ball bearing

U-shaped iron cage double row angular contact ball bearing
  • U-shaped iron cage double row angular contact ball bearing

U-shaped iron cage double row angular contact ball bearing


Application: Compared with single row bearings, double row angular contact ball bearings have better rigidity and can withstand overturning moments. The bearings are non-separable. Especially suitable for applications with high rigidity requirements. Widely used in the front wheel hubs of cars (some models also use double-row tapered roller bearings of the same size).


Features: The tiltability between the inner and outer rings of double row angular contact ball bearings is limited. The allowable tilt angle depends on the internal clearance of the bearing, the bearing size, the internal design and the forces and moments acting on the bearing, and the maximum allowable tilt angle. It should be ensured that no excessive additional stress is generated in the bearing.


If there is a tilt angle between the inner and outer rings of the bearing, it will affect the life of the bearing, and at the same time, the bearing running accuracy will decrease and the running noise will increase. Double row angular contact ball bearings typically use a nylon cage or a brass solid cage. When installing double row angular contact ball bearings, it should be noted that although the bearing can bear the bidirectional axial load, if there is a ball gap on one side, care should be taken not to let the main axial load pass through the notched side groove. When using the bearing, care should be taken to bear the main load on the side raceway without the ball gap.


Double row angular contact ball bearings are capable of withstanding large radial and axial bidirectional combined loads and moment loads, mainly radial loads, which limit the axial displacement of the shaft or casing in both directions with a contact angle of 30 degrees.


In addition, double row angular contact ball bearings also have good rigidity and can withstand overturning moments. The bearings are non-separable. Especially suitable for applications with high rigidity requirements. Widely used in the front wheel hub of a car.

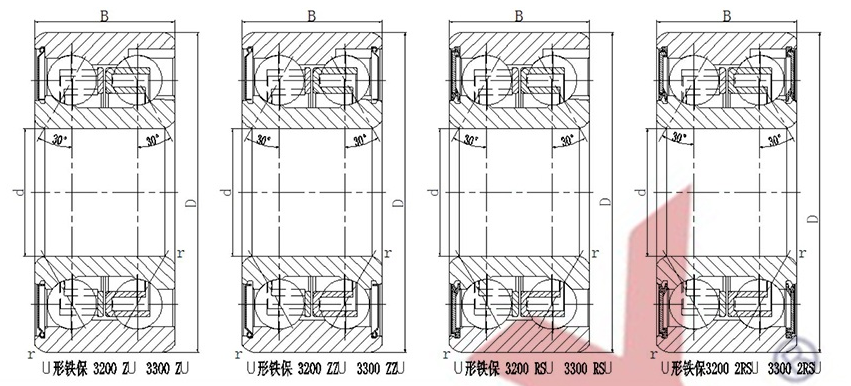

selectInquiryBearing Old No.Bearing New No. Dimensions(mm) Rated load(KN) Weight
Single-sided Dustpro Of TypeSingle-sided Sealed TypeDouble-sided Sealed TypedDBrminCrCorMass(KG)
3056203U 3203 ZU 3203 RSU 32032RSU 17 40 17.5 0.6 12.8 7.9 0.099
3056204U 3204 ZU 3204 RSU 32042RSU 20 47 20.6 1 20.6 15.1 0.156
3056205U 3205 ZU 3205 RSU 32052RSU 25 52 20.6 1 22.7 18.5 0.181
3056206U 3206 ZU 3206 RSU 32062RSU 30 62 23.8 1 32.7 27.4 0.301
3056207U 3207 ZU 3207 RSU 32072RSU 35 72 27 1.1 38.1 33.1 0.456
3056208U 3208 ZU 3208 RSU 32082RSU 40 80 30.2 1.1 50.4 44.8 0.615
3056209U 3209 ZU 3209 RSU 32092RSU 45 85 30.2 1.1 54.7 522 0.671
3056210U 3210 ZU 3210 RSU 32102RSU 50 90 30.2 1.1 54.2 52.9 0.71
3056211U 3211ZU 3211 RSU 32112RSU 55 100 33.3 1.5 69.2 68.7 0.978
3056212U 3212ZU 3212 RSU 32122RSU 60 110 36.5 1.5 85.9 86.5 1.33
3056213U 3213ZU 3213 RSU 32132RSU 65 120 38.1 1.5 91.9 98.8 1.72
3056214U 3214 ZU 3214 RSU 32142RSU 70 125 39.7 1.5 91.2 99.8 1.86
3056215U 3215 ZU 3215 RSU 32152RSU 75 130 41.3 1.5 100.5 111.2 1.99
3056303J 3303 ZU 3303 RSU 33032RSU 17 47 22.2 1 20.6 15 0.188
3056304J 3304ZU 3304 RSU 33042RSU 20 52 22.2 1.1 20.6 15.5 0.227
3056305J 3305 ZU 3305 RSU 33052RSU 25 62 25.4 1.1 27.5 22.8 0.373
3056306J 3306 ZU 3306 RSU 33062RSU 30 72 30.2 1.1 45.8 36.5 0.563
3056307J 3307 ZU 3307 RSU 33072RSU 35 80 34.9 1.5 58.2 47.5 0.769
3056308J 3308 ZU 3308 RSU 33082RSU 40 90 36.5 1.5 72 60.3 1.02
3056309J 3309 ZU 3309 RSU 33092RSU 45 100 39.7 1.5 887 74.4 1.35
3056310J 3310 ZU 3310 RSU 33102RSU 50 110 44.4 2 103.3 90.1 1.81
3056311J 3311ZU 3311 RSU 33112RSU 55 120 49.2 2 114.2 108 2.4
3056312J 3312ZU 3312 RSU 33122RSU 60 130 54 2.1 123.5 119.8 3.1
3056313J 3313 ZU 3313 RSU 33132RSU 65 140 58.7 2.1 154.3 150.5 3.87
