Thin-wall nylon cage double row angular contact ball bearings (38, 39, 30 series)

Thin-wall nylon cage double row angular contact ball bearings (38, 39, 30 series)
  • Thin-wall nylon cage double row angular contact ball bearings (38, 39, 30 series)

Thin-wall nylon cage double row angular contact ball bearings (38, 39, 30 series)


Application: Compared with single row bearings, double row angular contact ball bearings have better rigidity and can withstand overturning moments. The bearings are non-separable. Especially suitable for applications with high rigidity requirements. Widely used in the front wheel hubs of cars (some models also use double-row tapered roller bearings of the same size).


Features: The tiltability between the inner and outer rings of double row angular contact ball bearings is limited. The allowable tilt angle depends on the internal clearance of the bearing, the bearing size, the internal design and the forces and moments acting on the bearing, and the maximum allowable tilt angle. It should be ensured that no excessive additional stress is generated in the bearing.


If there is a tilt angle between the inner and outer rings of the bearing, it will affect the life of the bearing, and at the same time, the bearing running accuracy will decrease and the running noise will increase.


Double row angular contact ball bearings typically use a nylon cage or a brass solid cage. When installing double row angular contact ball bearings, it should be noted that although the bearing can bear the bidirectional axial load, if there is a ball gap on one side, care should be taken not to let the main axial load pass through the notched side groove. When using the bearing, care should be taken to bear the main load on the side raceway without the ball gap.


Double row angular contact ball bearings are capable of withstanding large radial and axial bidirectional combined loads and moment loads, mainly radial loads, which limit the axial displacement of the shaft or casing in both directions with a contact angle of 30 degrees.


In addition, double row angular contact ball bearings also have good rigidity and can withstand overturning moments. The bearings are non-separable. Especially suitable for applications with high rigidity requirements. Widely used in the front wheel hub of a car.

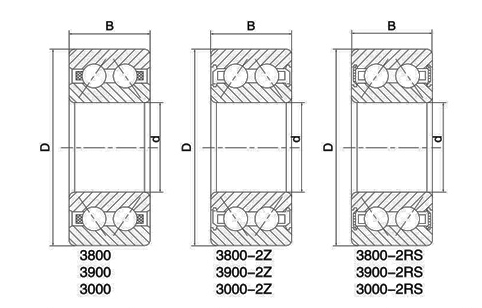

selectInquiryDesignationPrincipal DimensionsBasic Load RatingsLimited Speed Weight
dD B Cr.Cor.grease oilMass(kg)
3800 3800-2Z 3800-2RS 10 19 7 2.58 1.56 22000 30000 0.015
3900 3900-2Z 3900-2RS 10 22 10 4.08 2.36 21000 29000 0.022
3000 3000-2Z 3000-2RS 10 26 12 5.5 3.2 18000 23000 0.022
3801 3801-2Z 3801-2RS 12 21 7 2.89 1.92 20000 27000 0.018
3901 3901-2Z 3901-2RS 12 24 10 4.36 2.72 19000 26000 0.026
3001 3001-2Z 3001-2RS 12 28 12 6.1 3.7 17000 22000 0.025
3802 3802-2Z 3802-2RS 15 24 7 3.09 2.31 17000 24000 0.022
3902 3902-2Z 3902-2RS 15 28 10 4.55 3.12 16000 0.024
3002 3002-2Z 3002-2RS 15 32 13 8.5 5.4 14500 18000 0.036
3803 3803-2Z 3803-2RS 17 26 7 3.17 2.52 15000 22000 0.24
3903 3903-2Z 3903-2RS 17 30 10 4.99 3.79 14000 21000 0.027
3003 3003-2Z 3003-2RS 17 35 14 9 6 12500 16000 0.042
3804 3804-2Z 3804-2RS 20 32 10 4.9 3.9 14300 0.02
3904 3904-2Z 3904-2RS 20 37 13 9.3 6.6 12000 13200 0.046
3004 3004-2Z 3004-2RS 20 42 16 14.2 9.6 11000 13000 0.08
3805 3805-2Z 3805-2BS 25 37 10 5.5 4.9 11500 12700 0.025
3905 3905-2Z 3905-2RS 25 42 13 9.6 7.5 11000 12300 0.062
3005 3005-2Z 3005-2RS 25 47 16 15.2 11 9500 12000 0.1
3806 3806-2Z 3806-2RS 30 42 10 5.7 5.6 10000 11500 0.03
3906 3906-2Z 3906-2RS 30 47 13 9.9 8.3 9500 10500 0.095
3006 3006-2Z 3006-2RS 30 55 19 20.3 15.5 8000 10000 0.16
3807 3807-2Z 3807-2RS 35 47 10 6.1 6.2 8500 10000 0.035
3907 3907-2Z 3907-2RS 35 55 15 12.9 11.3 8000 9500 0.138
3007 3007-2Z 3007-2RS 35 62 20 24.2 20.4 6500 8500 0.24
3808 3808-2Z 3808-2RS 40 52 10 6.4 6.9 7000 8500 0.04
3908 3908-2Z 3908-2RS 40 62 16 17.4 15.8 6500 8000 0.158
3008 3008-2Z 3008-2RS 40 68 21 24.5 20.8 6000 7800 0.279
3809 3809-2Z 3809-2RS 45 58 10 6.7 7.7 6300 7000 0.055
3909 3909-2Z 3909-2RS 45 68 16 17.9 17.2 6000 6800 0.183
3009 3009-2Z 3009-2RS 45 75 23 39.3 36.4 5600 6200 0.364
