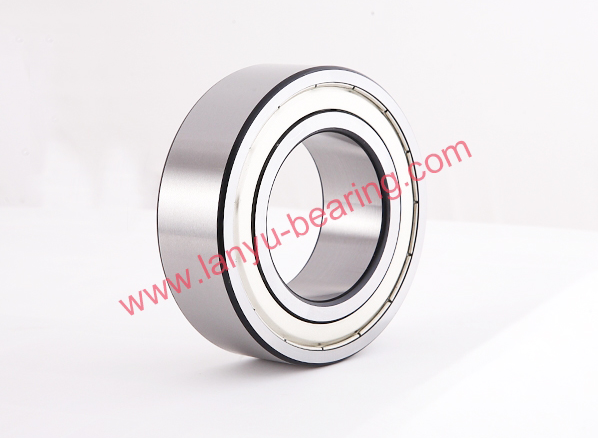

3200 double row angular contact ball bearing

3200 double row angular contact ball bearing
  • 3200 double row angular contact ball bearing

3200 double row angular contact ball bearing

Application: Compared with single row bearings, double row angular contact ball bearings have better rigidity and can withstand overturning moments. The bearings are non-separable. Especially suitable for applications with high rigidity requirements. Widely used in the front wheel hubs of cars (some models also use double-row tapered roller bearings of the same size).


Features: The tiltability between the inner and outer rings of double row angular contact ball bearings is limited. The allowable tilt angle depends on the internal clearance of the bearing, the bearing size, the internal design and the forces and moments acting on the bearing, and the maximum allowable tilt angle. It should be ensured that no excessive additional stress is generated in the bearing.


If there is a tilt angle between the inner and outer rings of the bearing, it will affect the life of the bearing, and at the same time, the bearing running accuracy will decrease and the running noise will increase. Double row angular contact ball bearings typically use a nylon cage or a brass solid cage. When installing double row angular contact ball bearings, it should be noted that although the bearing can bear the bidirectional axial load, if there is a ball gap on one side, care should be taken not to let the main axial load pass through the notched side groove. When using the bearing, care should be taken to bear the main load on the side raceway without the ball gap.


Double row angular contact ball bearings are capable of withstanding large radial and axial bidirectional combined loads and moment loads, mainly radial loads, which limit the axial displacement of the shaft or casing in both directions with a contact angle of 30 degrees.


In addition, double row angular contact ball bearings also have good rigidity and can withstand overturning moments. The bearings are non-separable. Especially suitable for applications with high rigidity requirements. Widely used in the front wheel hub of a car.

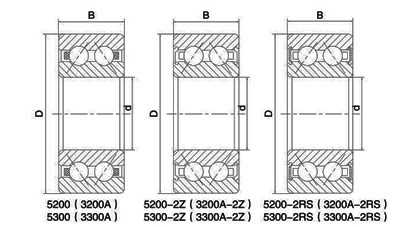

selectInquiryBearing No.Dimensions(mm)Rated load(KN)Weight
Open TypeDust-proof TypeSealeddDBCrCorMass(KG)
3200A 3200-2Z 3200-2RS 10 30 14.3 7 3.8 0.049
3201A 3201-2Z 3201-2RS 12 32 15.9 9.2 5.1 0.057
3202A 3202-2Z 3202-2RS 15 35 15.9 10 6.1 0.064
3203A 3203-2Z 3203-2RS 17 40 17.5 12.8 7.9 0.096
3204A 3204-2Z 3204-2RS 20 47 20.6 19 12.1 0.153
3205A 3205-2Z 3205-2RS 25 52 20.6 20.6 14.3 0.175
3206A 3206-2Z 3206-2RS 30 62 23.8 28.6 20.4 0.286
3207A 3207-2Z 3207-2RS 35 72 27 38 27.8 0.436
3208A 3208-2Z 3208-2RS 40 80 30.2 42.5 32.5 0.59
3209A 3209-2Z 3209-2RS 45 85 30.2 48 37 0.64
3210A 3210-2Z 3210-2RS 50 90 30.2 51 42 0.689
3211A 3211-2Z 3211-2RS 55 100 33.3 63 53 0.986
3212A 3212-2Z 3212-2RS 60 110 36.5 71.5 58.5 1.27
3213A 3213-2Z 3213-2BS 65 120 38.1 83.5 72.5 1.57
3214A 3214-2Z 3214-2RS 70 125 39.7 87.5 79.5 1.8
3215A 3215-2Z 3215-2RS 75 130 41.3 90 80.5 1.9
3216A 3216-2Z 3216-2RS 80 140 44.4 106 95.5 2.39
3217A 3217-2Z 3217-2RS 85 150 49.2 112 106 3.06
3218A 3218-2Z 3218-2RS 90 160 52.4 140 129 3.73
3219A 3219-2Z 3219-2RS 95 170 55.6 163 184 5.1
3220A 3220-2Z 3220-2RS 100 180 60.3 210 240 6.14
3300A 3300-2Z 3300-2RS 10 35 19 9.2 5.1 0.092
3301A 3301-2Z 3301-2RS 12 37 19 10 6.1 0.109
3302A 3302-2Z 3302-2RS 15 42 19 12.8 7.9 0.132
3303A 3303-2Z 3303-2RS 17 47 22.2 20.4 12.1 0.181
3304A 3304-2Z 3304-2RS 20 52 22.2 20.6 12.7 0.227
3305A 3305-2Z 3305-2RS 25 62 25.4 30.5 20.5 0.362
3306A 3306-2Z 3306-2RS 30 72 30.2 39.5 27.5 0.553
3307A 3307-2Z 3307-2RS 35 80 34.9 49.5 35 0.766
3308A 3308-2Z 3308-2RS 40 90 36.5 60.5 44 1.01
